Magento 2 Web To Print

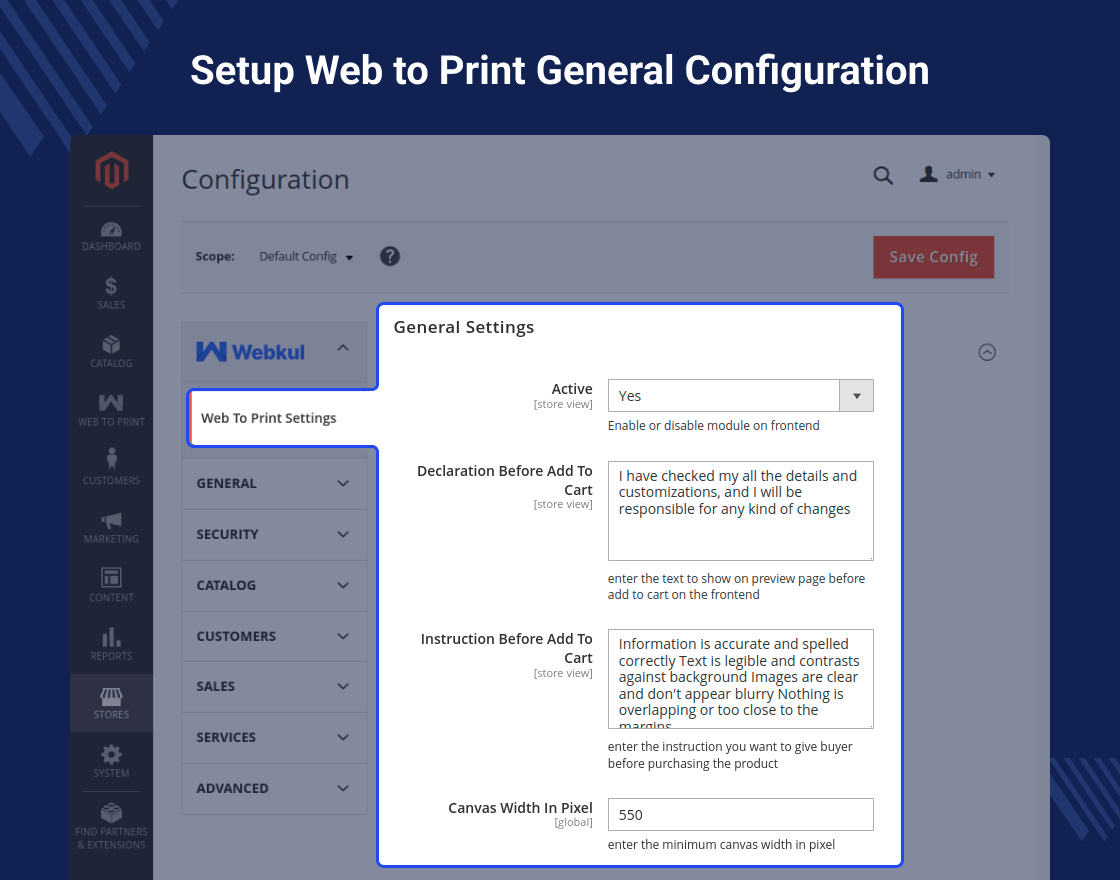

Once the module is installed, the admin will configure the module from the admin backend panel.

Here the admin will enable the extension, set the text for declaration and instruction before adding to cart, set the canvas width and height, set the image width and height, and set the uploaded image dpi.

This will configure the module for use and you can save the module configuration settings after that.

• Enable or disable the module
• Enter declaration confirmation content
• Display instruction information before
• Add to Cart Set base and mask image dimensions
• Set minimum DPI for the images

Under this section, the admin will be able to upload predefined images for the customized products. While uploading the images the admin has to provide certain information for the new image.

This includes the alt description of the image, upload the image itself, and set the category for the image being uploaded. The admin can also see the image thumbnail preview after uploading the image.

• Set the Image Alt description.
• Upload the Image having extensions - jpg, png, gif, jpeg.
• Check the uploaded image thumbnail
• Select the category for the image being uploaded.
• Edit or delete any of the uploaded images.

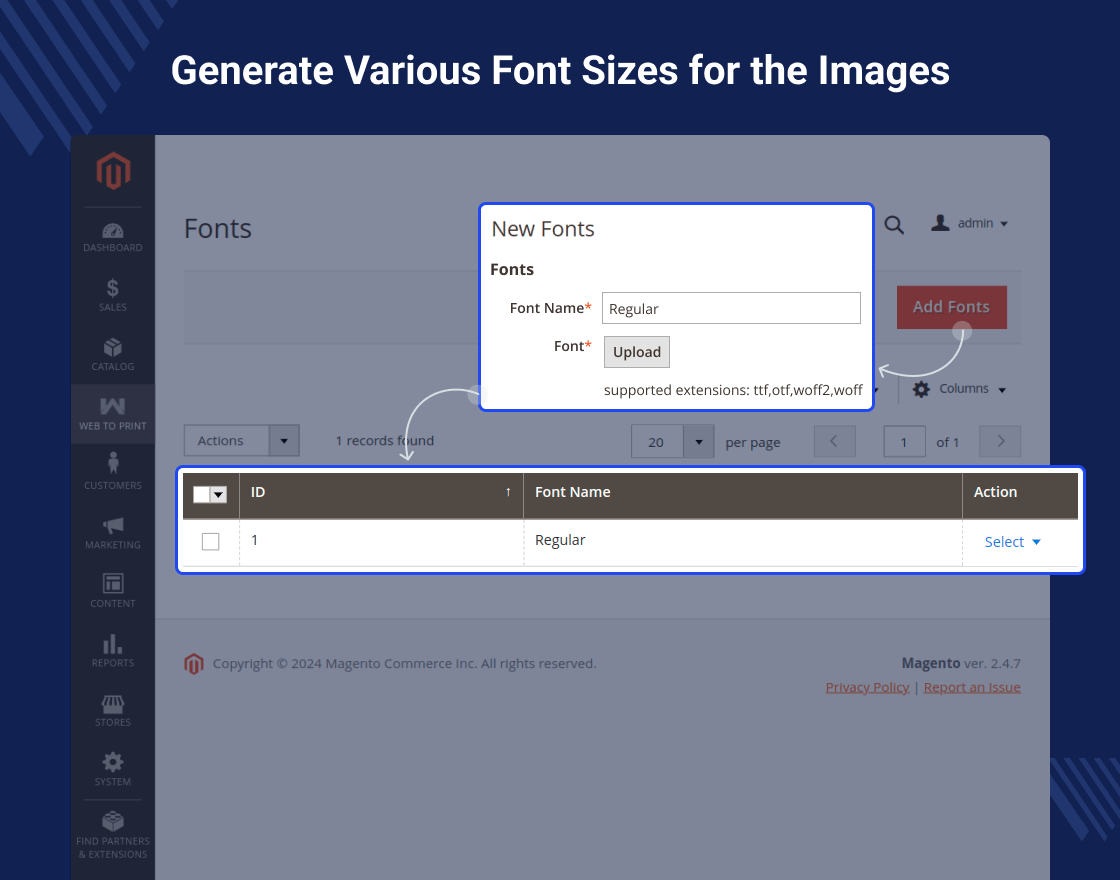

Under this section, the admin will be able to add new fonts for the text editor. To do so the admin will have to upload the font files for the customizable product. This helps the customers to choose various font styles for the text at the frontend.

The admin can download the file extension types allowed for the fonts and can upload the same. After this, the customers can find the added fonts for use at the front end.

• Supported extensions: ttf, otf, woff2, woff
• Set font face label
• Edit/delete the added fonts

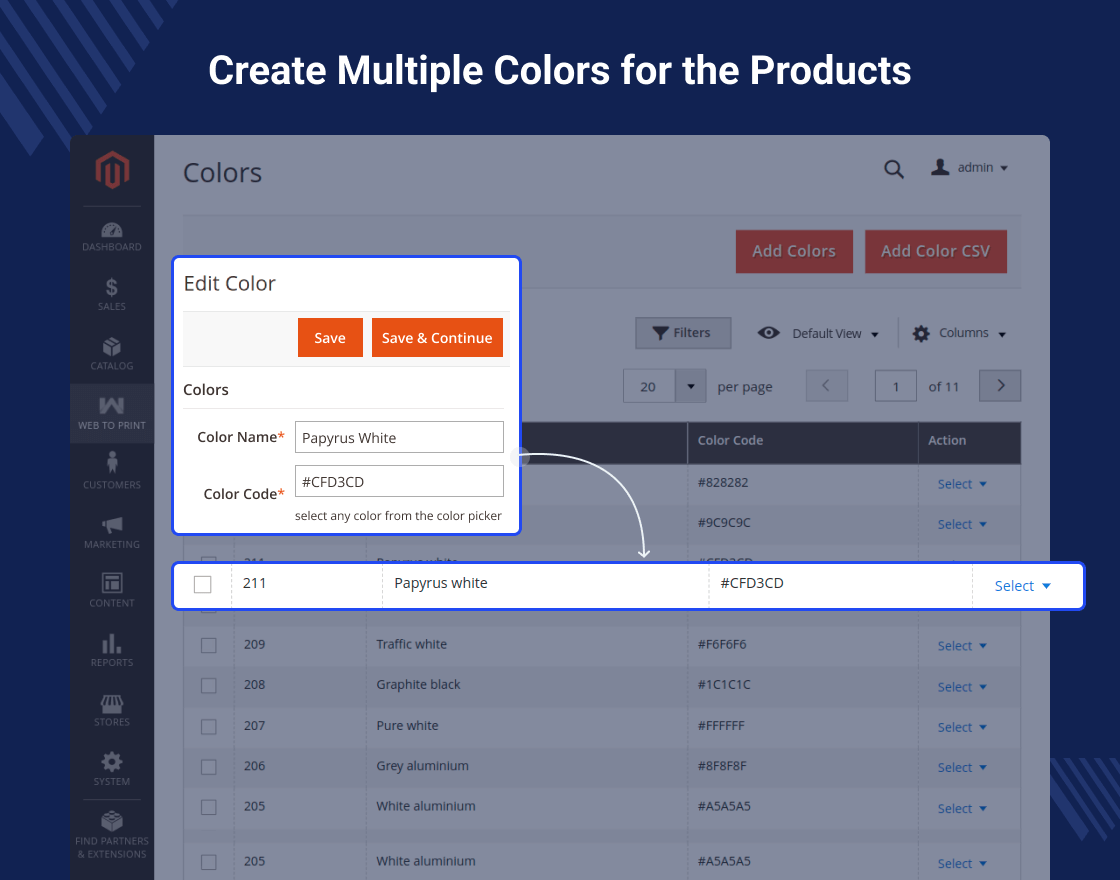

Under this section, the admin can create some predefined color options for the customization template using HTML or RGB color codes. You can also add the color by typing in the color name as well.

To add a color the admin will enter the Color Name and the Color Code. Lastly, click the save button to save the added color. After adding the color you can also edit or delete the created colors.

• Set the Color label
• Supports RBG Color
• Code Supports HTMl Color Code
• Edit/delete the colors

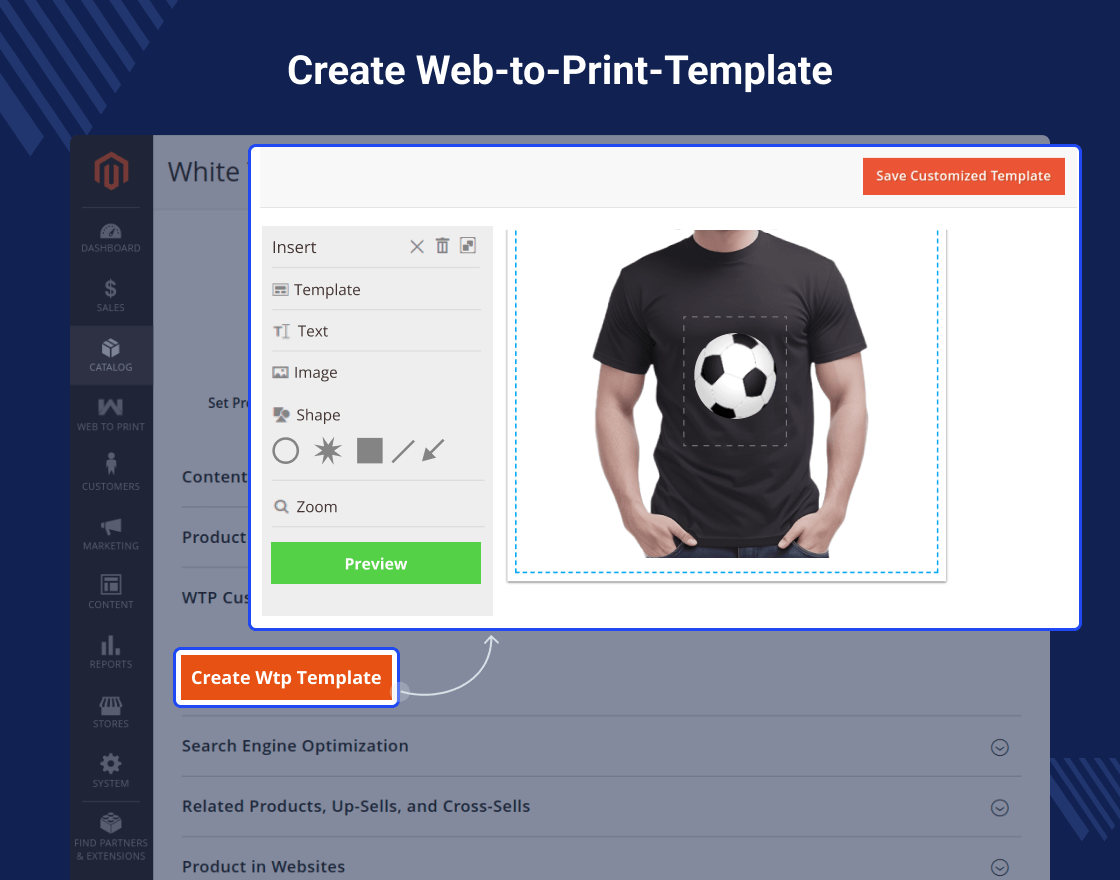

To create a template, the admin first needs to create a product by selecting the Web to Print product type. After that, fill in all the required information for the product and then click the 'Web To Print ' button on the edit product page for the product.

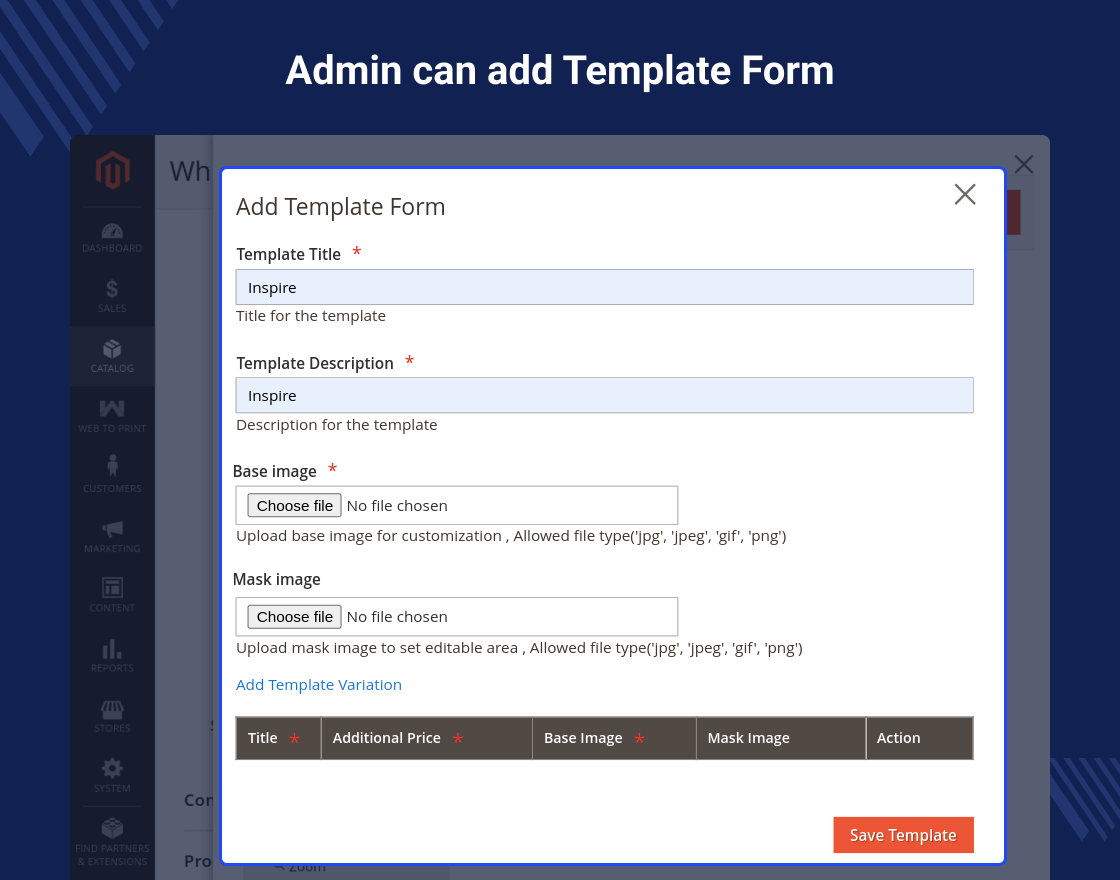

The admin can create multiple templates for the customized product such as t-shirt can have front view and back view. The admin can fully customize the template using the text editor, images, and shapes.

• Set frontend title for template
• Upload the base image and mask image to define the editable area
• Make a template default Add/edit or delete the template

At the product page, the customers will find the ‘Customize Product’ button just below the 'Add to Cart' button. To customize the product click the Customize product button. This brings up the canvas editor for customizing the product.

The ‘Customize Product’ button and the canvas editor tool will only appear for the Web to Print product types.

• Customize Product button will only appear for Web To Print product type
• Canvas editor tool for customizing the product
• Add the saved product to the cart for checkout

Using the Canvas editor, the customers will be able to customize the product in real-time and see the changes.

There are various tools available in the Canvas to - upload images, add text, add shapes, preview the template, color options, font styles, and adjust layouts.

Apart from this, the customer can also save the changes made and can also preview the changes before adding the customized product to the cart.

• See live changes
• Save and preview

Add text elements to the product and customize the product as you want it. Move the text inside the masked area, change size, color, alignment and more.

• Add Customizable text to product
• Set text size
• Change text color using color options or codes
• Make text bold & italics
• Set text alignment - left, right, center
• Select font style
• Send text back or front
• Add duplicate text

The customer has two options for adding images to the customizable product, either the customer can choose the pre-defined images by the store owner or upload a custom image from his computer system by clicking the add button.

The customers can also search for the images, and change the dimension of the image.

• The customer can browse and upload custom images
• Change image dimensions
• Lock image ratio
• Duplicate the image
• Send image to the back or front

Various forms of customizable shapes can be added to the product using the shapes editor. Some of the customizable shapes include a box, circle, line, arrow, and other.

You can also fill in the shapes with the background color, change the shape stroke size, lock the image, layer up or layer down the image over another image.

• Change shape fill color
• Change shape border color
• Lock image ratio
• Set border width
• Duplicate the shape
• Send shape in the front or back

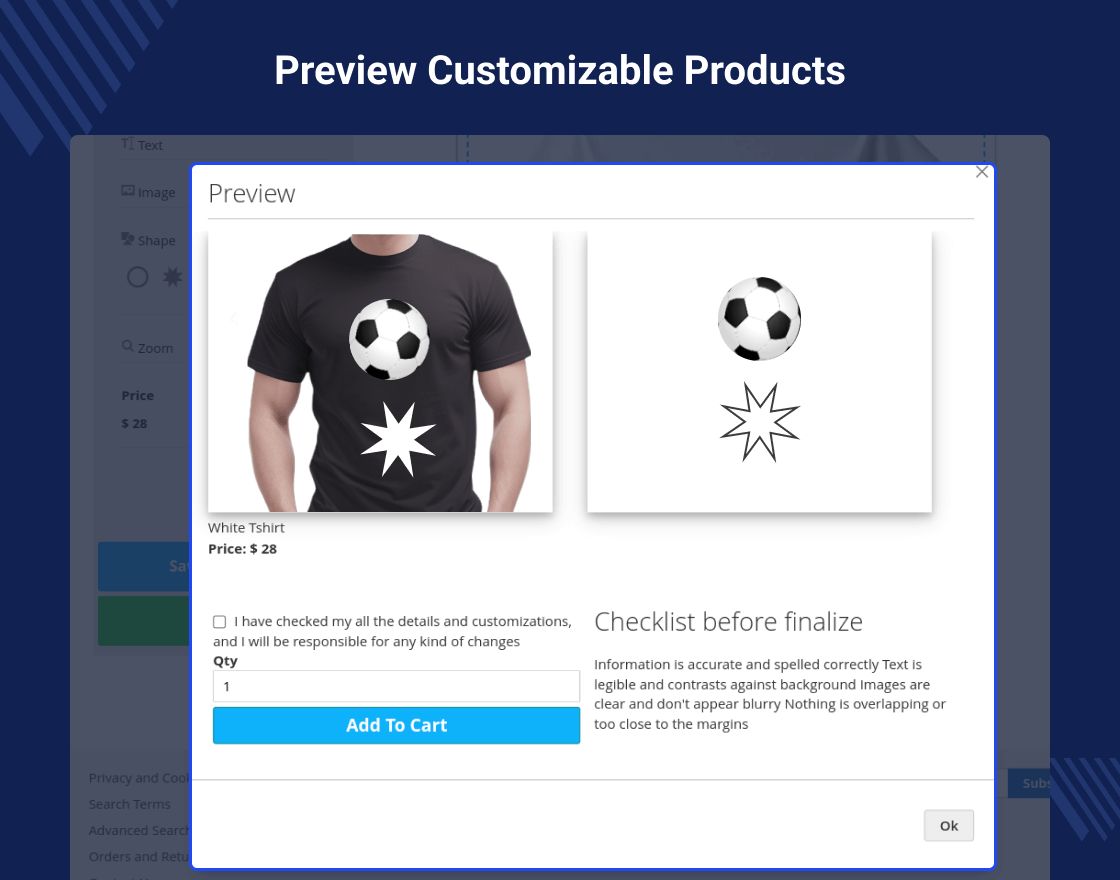

Once the product gets customized on the canvas, the customer can save the template first and then can preview it. The customer will see the final image prepared with the price of the product.

The customer will accept the declaration, increase the quantity of the product if required, go through the visible checklist before finalizing the product to adding to cart for the checkout.

• Read and Accept declaration information
• Save the template and preview it
• Update order quantity and add to cart

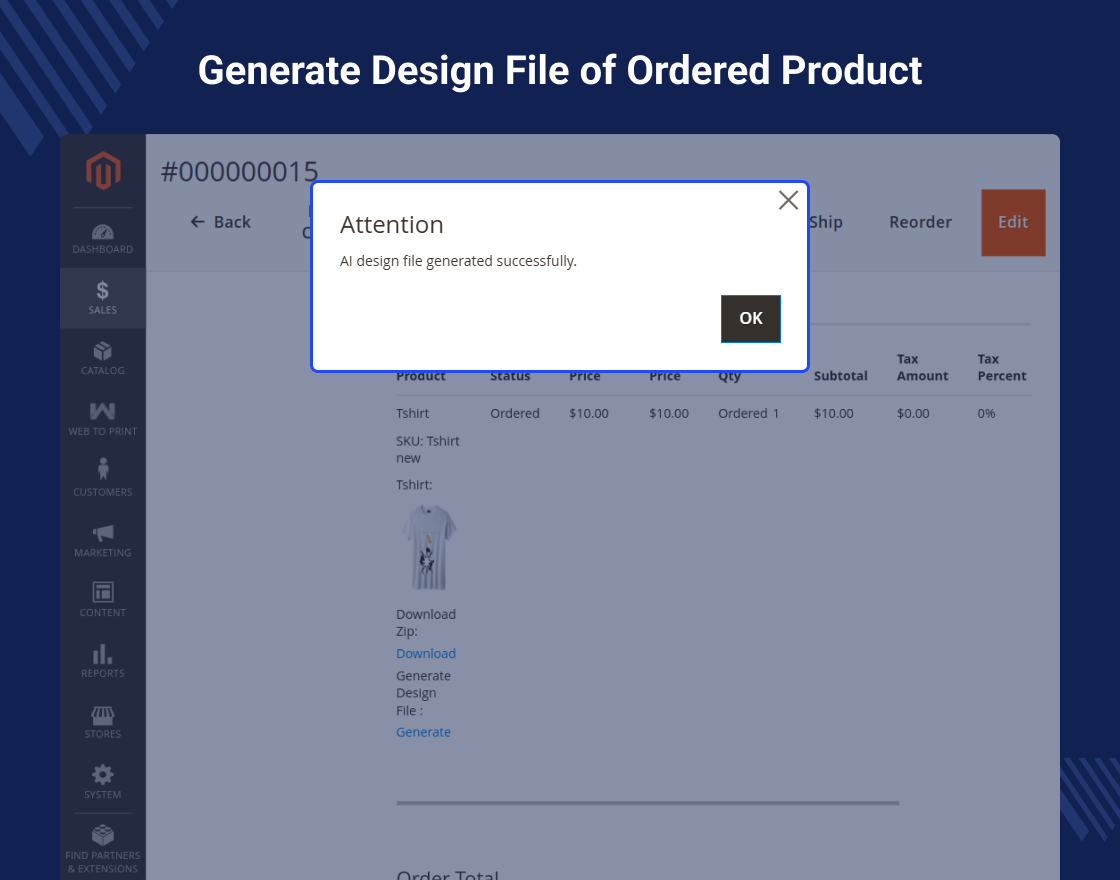

After saving the customization, the product image gets saved and displayed in the database. The admin from the orders section can download the final images for reference.

The final product images are also visible in the shopping cart to the customer as well.

• Product image gets updated
• Admin can download the final images
• The customer can see the final image in the shopping cart
